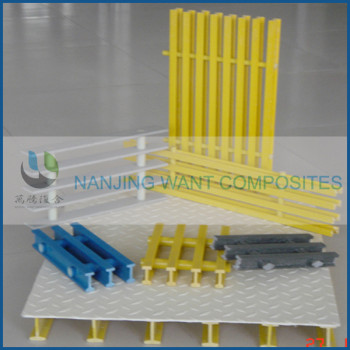

Fiberglass pultruded grating

Fiberglass pultruded grating

Fiberglass pultruded grating
CategoriesFRP Grating
AlbumView larger image
BrandWANT FRP
colourcustomized
Unit PriceUS $ 35 / square meter
FOB portShanghai,China
Terms of PaymentL/C, D/A, D/P, T/T, Western Union
Update Time2020-09-25
Detail Information



Standard Pultruded Grating

It is a standard pultruded grating product stocked by distributors nationwide. It is available with individual bearing bars in either 1" or 1-1/2" "I" shapes or a 2" "T" shape. it is a flame retardant product utilizing a polyester or vinyl ester resin. The bearing bars use both longitudinal (glass roving) and multidirectional (glass mat) reinforcements as well as a synthetic surfacing veil to provide unequaled corrosion resistance.




Custom Grating

Custom grid and grating systems are designed to accommodate specific applications that cannot effectively be met by a standard fiberglass grating. I offers the customer options such as selection of bar spacing (which creates varying open space in the grating or grid), bar shape, cross-rod placement, custom fabrication, custom resin or color.




Heavy Duty Grating

Heavy Duty Grating is a pultruded bar type grating that can be designed and used like traditional metal grates. The solid individual bearing bars are designed to take heavy wheel traffic such as fork lifts, tow motors and truck traffic. Heavy duty grating is constructed of the same type composite used in the other products.




• Extremely Strong

• Corrosion Resistant

• Impact Resistant

• Low Electrical and Thermal Conductivity

• Non-skid Surface

• Easily Fabricated in the Field




Surface Texture

Grids can be ordered with or without an anti-skid grit surface. A variety of grit material and textures can be ordered.
